HP Series pumps offer precise metering at high pressure.

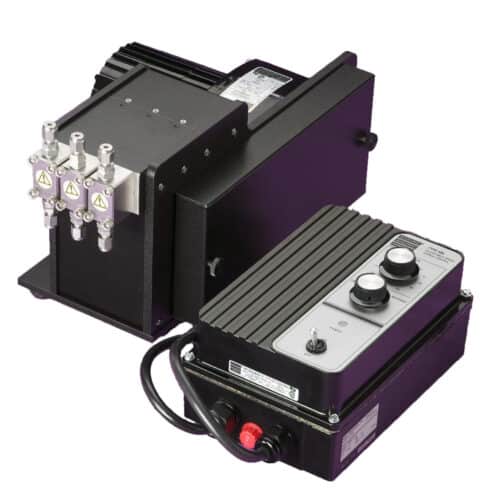

Model BBB-4 VS:
- Flow rate 8.0 – 175.0 mL/min
- Maximum pressure 3000 psi
- Material of construction 316SS
- Electrical 115V/50-60Hz
- Remote control operation
- Explosion proof
Wetted Parts:
- For 316: type 316 stainless steel, sapphire, ruby, gold, UHMW polyethylene, CTFE.
- For PEEK: PEEK, sapphire, ruby, UHMW polyethylene, inert polymers.
Reproducibility: typically ±0.3%
Viscosity Limit: 500 centipoise
Tubing Connections:
- Inlet valves: 1/8″ Swagelok style connection for use with 1/8″ tubing (tube nut and ferrule provided with pump).
- Outlet valves: 1/8″ Swagelok style connection for use with 1/8″ tubing (tube nut and ferrule provided with pump).
- Valves with special fittings available on request.
Motor: brushless, AC Synchronous, TENV (totally enclosed non ventilated).
*Maximum flow rate specifications are based on theoretical volume displacement; actual flow rates will vary depending on such factors as fluid viscosity, compressibility and temperature.
Download product brochures and documentation from our Documentation page.
